Heat-powered cooling turns waste heat into cold without electricity
Researchers from KIT and the University of Tsukuba have built a heat-driven solid-state cooling prototype using two nickel-titanium shape-memory films.
A team from Karlsruhe Institute of Technology and the University of Tsukuba has built a solid-state cooling system that runs on heat rather than electricity. The prototype turns waste heat or sunlight into mechanical motion, then uses that motion to create measurable cooling — a neat reversal of the usual refrigerator logic.

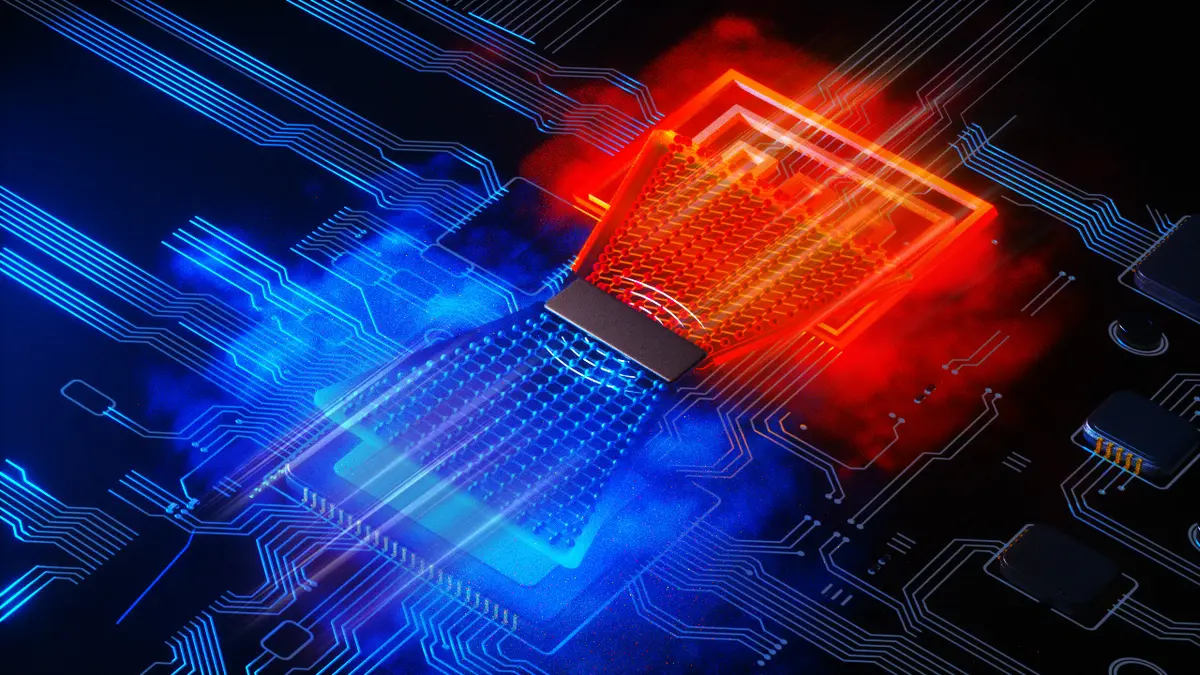

What’s actually going on: the system combines two thin nickel-titanium shape-memory alloy films. When heated, the first film contracts and converts thermal energy into mechanical work. That movement repeatedly loads and unloads the second film, driving reversible changes in its crystal structure that produce elastocaloric cooling.
In laboratory tests, an actuator temperature of 86°C produced a 4°C temperature difference at the component level, while the elastocaloric refrigerant itself showed a temperature change of almost 13°C. The researchers also operated the system with an external heat source at 130°C, demonstrating that it can work with realistic sources of waste heat.
The research was published in the peer-reviewed journal Nature Energy on 28 August 2026 under the title “Heat-driven elastocaloric cooling with shape memory films”. The paper’s DOI is 10.1038/s41560-026-02122-6.
Why you should care: conventional refrigeration uses an electrically driven compressor and refrigerant to move heat. Cooling and heating already account for a huge share of global energy demand, while some refrigerants contribute to global warming. Elastocaloric systems use the temperature change of a stressed and released shape-memory material instead, but earlier designs still needed an electric actuator to provide the force.
This prototype removes that electrical actuator by letting heat do the mechanical work. That could eventually make it useful for cooling processors with their own waste heat or managing heat in vehicles using energy from the drivetrain. But the current setup is a proof of concept, not a replacement for your fridge: it is not yet optimised for maximum cooling power, and the team says multiple films will need to be connected in parallel to scale performance.
Our opinion
A refrigerator powered by heat sounds like an engineering prank, but the principle here is refreshingly sensible. The measured cooling is modest and the prototype is nowhere near a consumer product, yet turning waste heat into both motion and cooling is exactly the kind of clever efficiency trick the energy-hungry future needs. The next challenge is making it powerful, compact and boring enough to install everywhere.
